water mill

Water Mill

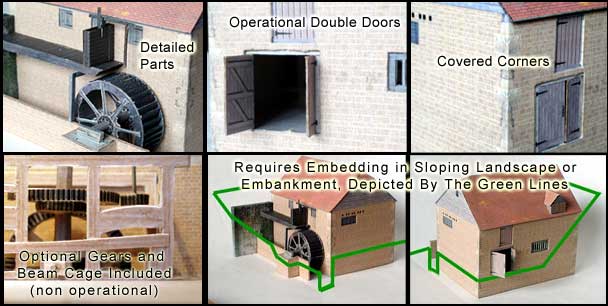

Based on the mill that once stood in Lurgashall, West Sussex. Built in the 17th century it continued working until 1935. in 1973 it was moved to the Weald and Downland Living Museum, albeit with restyled roof. The model is presented with shuttered windows, operational double doors and rotating wheel (manual operation) . The penstock is closed to 'stop water flow'  and window shutters closed. Therefore, the scene is a non-working day or, either side of working hours. Ground floor only internal decoration with optional gearing and beam gear cage viewed through the operational doors is included.

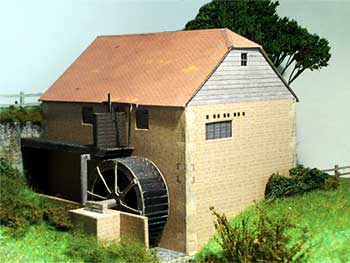

The prototype was built into the side of a road embankment and the head mill race was piped under the road from a mill pond on the other side. This favours the railway or diorama modeller because if the scene is set against a back scene,  as shown in the photograph, then the mill pond need not be modelled, thus saving layout space. Also, with the penstock being closed there is no need to model flowing water.

Footprint: 140 mm x 133 mm (including retaining walls) .

Build skill level: ADVANCED (See Welcome Page for definition) .
Rated ADVANCED because of intricate wheel and gearing assembly.

Material kit also available (see below) .

!

water mill details

046

Water Mill .pdf Card Kit

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Canada, Australia, New Zealand customers.

Weight: kg

Water Mill Materials Kit

DIY Print Kit Contents:

  • 6 x A4 Sticky Back Label Sheets, for Ink Jet or Laser Printers
  • 4 x 750 micron (0.75 mm) A4 Grey Board
  • 1 x 50 mm x 1 mm wire

You still need to print the model kit yourself and source adhesives.

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  • Materials as above
  • Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

You still need to fix paper to board, cut out the parts and source adhesives yourself.

Note: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

The Prototype

On which this model is based. Lurgashall Water Mill. (Note: The roof in the linked photograph is not the original style) .
