industrial unit & scaffold rig

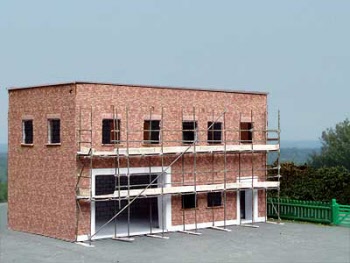

Industrial Unit

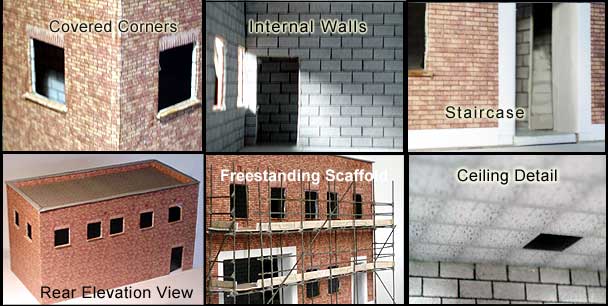

A typical mid-20th century styled industrial building. It is presented as ‘ under construction ’. The shell is complete with roof, floors, ceilings, internal wall and staircase but, without doors or windows. Outside the brick style is stretcher bond and inside the walls are concrete block work.

The outstanding feature is the free-standing, 2-tier scaffold rig that spans the length of the building. Template designs and build instructions are included for this.

Footprint: 178 mm x 107 mm (including scaffold rig).

Build skill level: INTERMEDIATE (See Welcome Page for definition).

Material kit also available (see below) .

!

Industrial unit details

037

Industrial Unit .pdf Card Kit

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Canada, Australia, New Zealand customers.

Weight: kg

Industrial Unit Materials Kit

DIY Print Kit Contents:

  • 8 x A4 Sticky Back Label Sheets, for Ink Jet or Laser Printers
  • 4 x 750 micron (0.75 mm) A4 Grey Board
  • 1 x A4 Non-sticky Paper for Ink Jet or Laser Printers

The items below are ONLY supplied for the scaffold rig option.

  • 14 x 84 mm x 0.7 mm wire (Standard poles)
  • 1 x 64 mm x 0.7 mm wire (False upright pole)
  • 4 x 175 mm x 0.7 mm wire (Ledger poles)
  • 4 x 156 mm x 0.7 mm wire (Mid & Top Rail poles)
  • 1 x 145 mm x 0.7 mm wire (Longitudinal Brace pole)
  • 34 x 16 mm x 0.7 mm wire (Transom poles)
  • 4 x 32 mm x 0.7 mm wire (Transverse Brace poles)

You still need to print the model kit yourself and source adhesives.

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  • Materials as above
  • Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

You still need to fix paper to board, cut out the parts and source adhesives yourself.

Note: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

The Prototype

On which this model is based.

An industrial building in Feltham, West London
