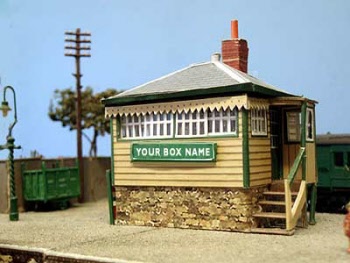

L&SWR type1 signal box model

L&SWR Type 1 Signal Box

Introduced in 1871, with the last examples built in 1880, still in use during the BR period. This low plinth version was placed on station platforms. A lean-to store adjoins the rear. The model is based on the 1st generation Crewkerne Box.

Presented in BR(S) building green, white and cream paintwork with ham stone ashlar plinth.

Footprint: 68 mm x 53 mm; 73 x 58 incl. overhangs; 73 x 82 incl. store overall.

Build skill level: ADVANCED (See Welcome Page for definition).

Expert build time: 8 hrs.

!

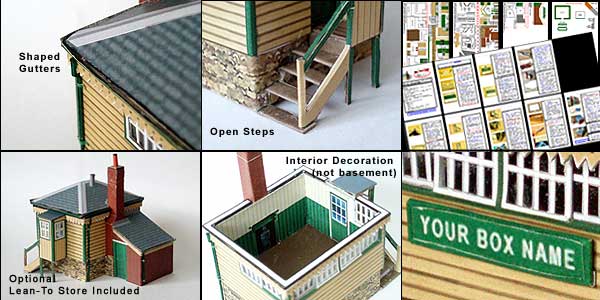

lswr type 1 signal box details

009

L&SWR Type 1 Signal Box Card Kit

Interior Kit Details.

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Weight: kg

L&SWR Type 1 Signal Box + Interior Materials Kit

Contents:

  1. 3 x 750 micron (0.75 mm) A4 Grey Board.
  2. 4 x A4 Sticky Backed Paper for Ink Jet or Laser Printers.
  3. 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Sheet.
  4. 250 mm x 1 mm wire

You still need to print the model kit yourself and source adhesives.

This model requires 2 x A4 white, non-sticky print paper that you probably already have to hand (not included).

Weight: kg

L&SWR Type 1 Signal Box (no interior) Materials Kit

Contents:

  1. 2 x 750 micron (0.75 mm) Grey Board.
  2. 3 x A4 Sticky Backed Paper for Ink Jet or Laser Printers.
  3. 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Sheet.
  4. 250 mm x 1 mm wire

You still need to print the model kit yourself and source adhesives.

This model requires 1 x A4 white, non-sticky print paper that you probably already have to hand (not included).

016

Built to Order - L&SWR Type 1 Signal Box

Hand built to order.

  • Paper and card construction
  • Printed using Epson Durabrite┬« Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here
  • Shipping ONLY to UK Customers
  • Price includes postage - Second class signed for
  • Allow 14 days for delivery
  • Not suitable for children under 14 years of age.

Enhanced with 3D printed plastic drain pipes and window frames (not door windows). Roof is removable for your inspection or light fitting. (Lights not supplied).

The Prototype

On which this model is based - Crewkerne Signal Box (original).
